Spiral Wound Gasket


Dave Engineers manufactures Spiral Wound Gaskets in full range of metal alloys and fillers. The company has modern production facilities and well equiped laboratory with facilities like compression and recovery testing, leaking testing etc.

Dave Engineers manufactures strictly to the standards by ASME B16.20 (Formerly API 601), DIN, JIS or any special shapes and sizes.

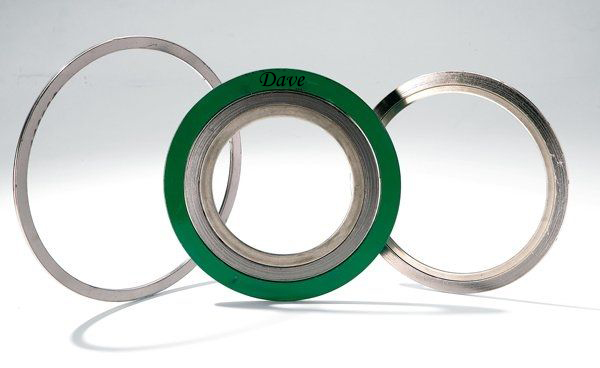

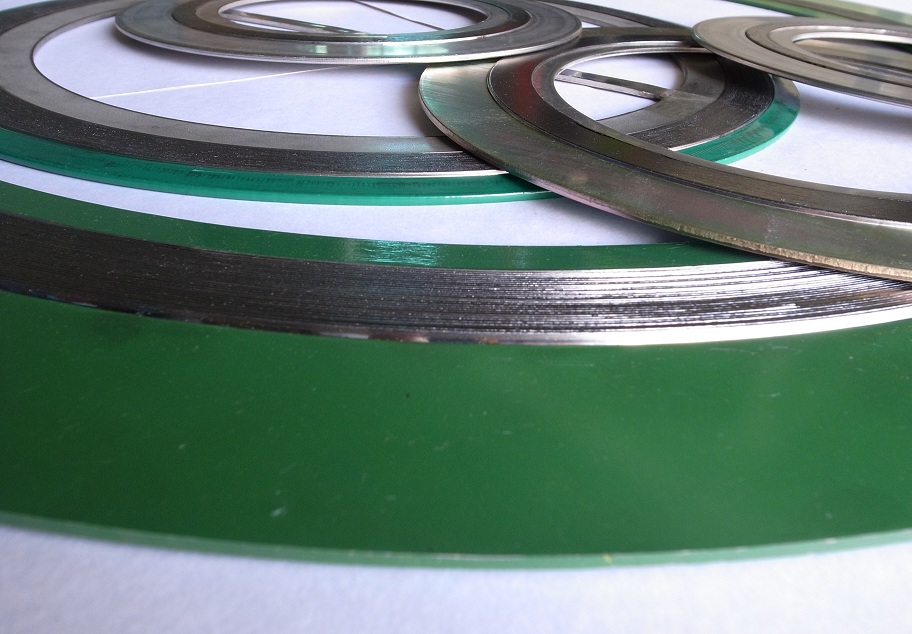

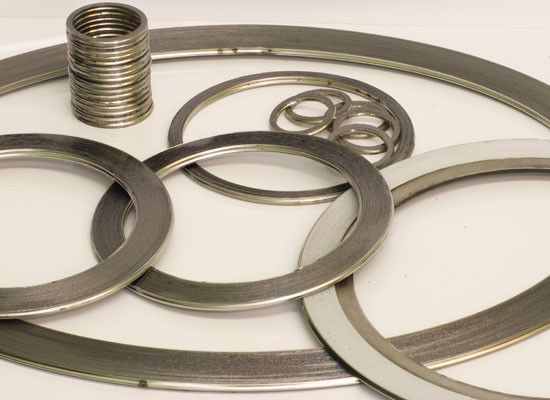

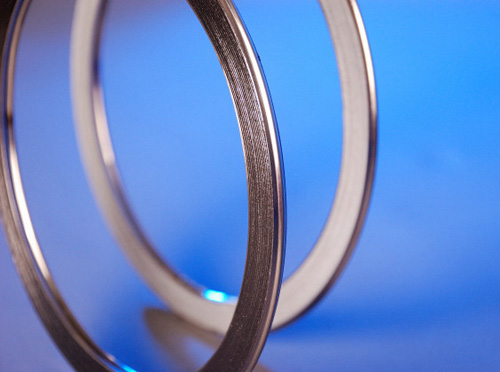

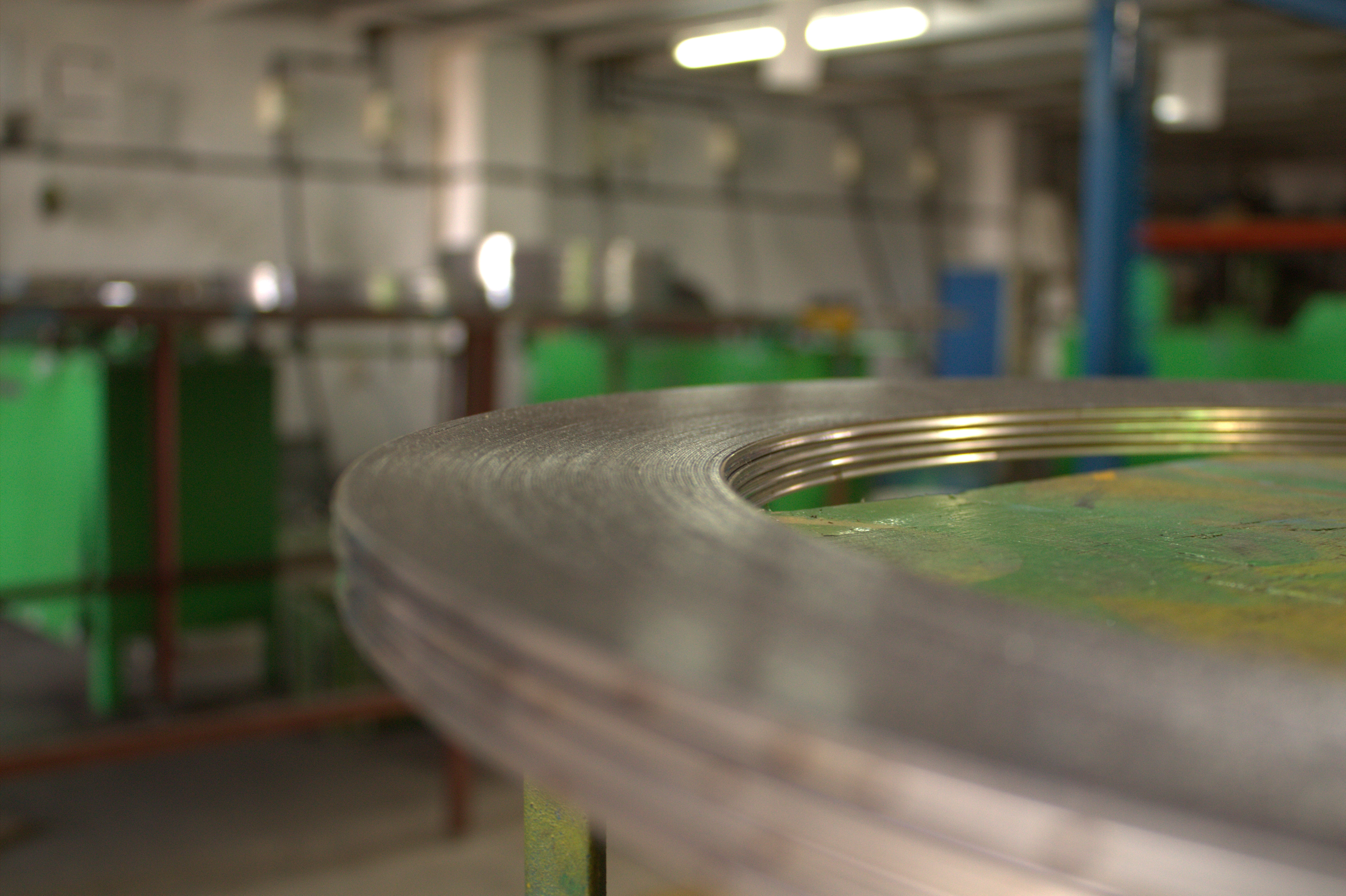

Spiral Wound Gasket comprise a mix of metallic and filler material. The gasket has a metal wound outwards in a circular spiral with the filler material wound in the samemanner but starting from the opposing side. This results in alternating layers of filler and metal. The filler material in these gaskets acts as the sealing element, with the metal providing structural support.
Spiral Wound Gaskets can be reinforced with inner ring or outer ring or both. The outer centering ring holds the gasket centrally within the bolt circle and inner ring improves. The axial rigidity and resilience of gasket.

Properties

  •   1.Suitable for use across wide pressure range and temperature.
  •   2.Spiral wound gaskets can be used to seal fluid pressure upto 400 bar and cryogenic temperature as low as -200 deg     celcius and upto elevated temperatures of 1000 deg celcius.
  •   3.Due to its simple design, Spiral Wound Gaskets are easy to install.
  •   4.Due to the options of different winding materials, It can be tallored to awide range of operating conditions.
  •   5.Easy to remove.
  •   6.Cause no damage to the flange

Dave Engineers serves you the following spiral wound gasket profiles:

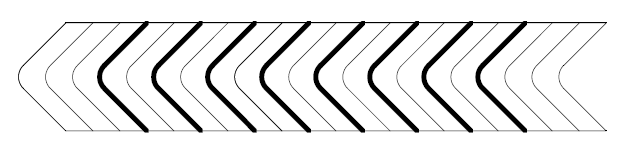

Dave Style W

Basic Construction type with several plies of metal winding and non metallic cushioning filler. These are wound into spirals by welding at the beginning and in the end of the winding.

This type is used for male & female (M&F) type flanges and tongue and groove (T&G) type flanges. Suitable for applications which includes pumps, bonnet, valves.

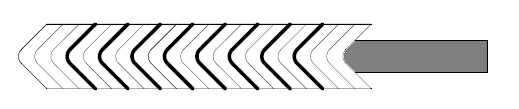

Dave Style WIR

A metallic inner ring is added which acts as a prevention to the accumalation of solids, reduce turbulent flow of process fluids.

These are used for male and female (M&F) type flanges.

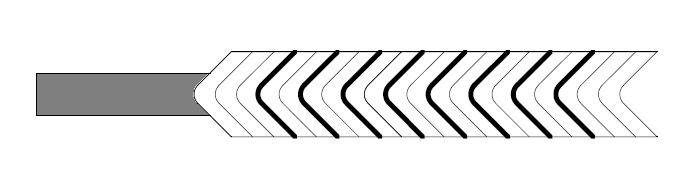

Dave Style CW

A metallic outer ring is added which accurately centers gasket on flange face. It provides extra strength to prevent gasket blow out.

These are used for rased face flanges and flat faced flanges.

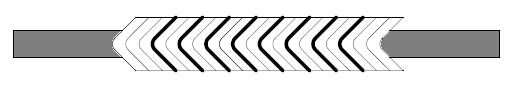

Dave Style CWI

An inner ring is added to " Dave Style CW" which protects spiral wound Gaskets from inward buckling during tightening.

Dave style CWI provides an additional compression limiting stop. Acts as a corrosion barrier. Thus, preventing any erosion in the flanges. Inner rings are generally supplied in the same material as the Spiral Wound Component.

Suitable for rased face and flat face flanges. Dave Style CWI is recommended for the following cases:

  •   1.Hight pressure classes such as 600 class and above.
  •   2.For high temperature.
  •   3.Used where corrosive and toxic media is present.

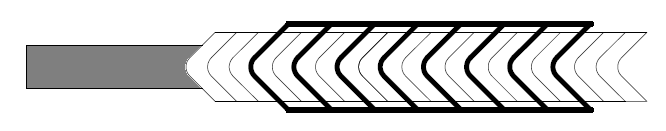

Dave Style LS

Dave style LS provides superior sealing at low bolting stress. This style has all the features that are required for low bolting applictaions. The LS Gasket is designed to compress at significantly low bolt loads as compared to 150 class gaskets.

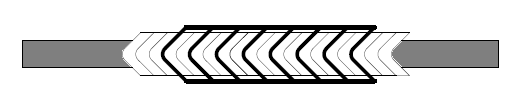

Dave Style LSI

Dave style LSI has all the features that Style Ls has, In addition to that It provides inner ring which in addition gives extra sealing and protection during high temperature and pressure conditions.

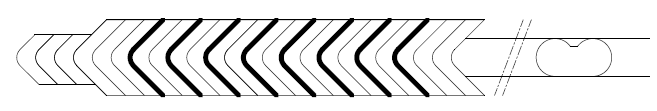

Dave Style HX-W

Dave style HX-W is specially designed for heat exchangers. this style is generally specified for shell side and tube side of heat echangers.

The outer nose guides for the exct loaction of the gasket and works similarly as a guide ring for the gasket.

Such Gaskets can have partition rib of different width and thickness and in different design.

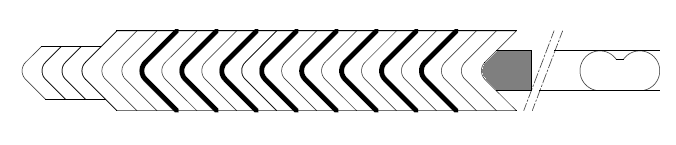

Dave Style HX-WIR

Dave style HX-WIR is similar to style HX-W but addition to that, has an inner ring to provide extra strength. Similar to Dave Style HX-W, It can have partition rib of different width and thickness and in different design.

Special Shape

Spiral Wound Gaskets can made in different types of shapes. Such Gaskets are for special flange assemblies like hand hold covers. Some of the shapes are shown below.



Caution

Storage

  •   1.Store Gasket in original wrapping.
  •   2.Do not stand Gasket upright.
  •   3.Do not hang the Gaskets.
  •   4.Never press, twist or bend Gaskets

Installation

  •   1.Before installing Gasket, clean the surface of the flange and check if it has no scratches.
  •   2.Place Gasket in the correct manner.
  •   3.Do not re-use Gasket.
  •   4.Do not misshandle Gaskets of large diameter as such Gaskets are easily damaged. At least two people shouldcarry Gasket    of large diameter.

Tightening

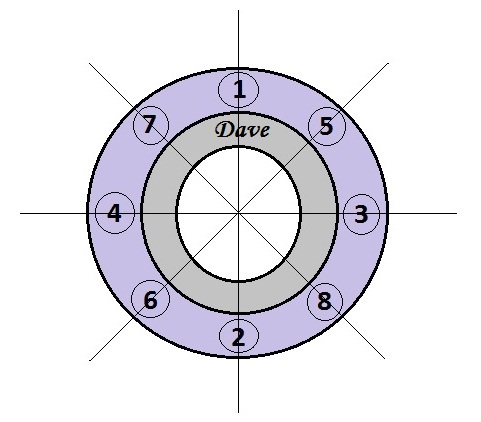

To obtain uniform seating stress, apply tightening laod in four to five steps in diagonal manner (as shown in diagram). Gradually increase the strenght of the tightening laod untill the prescribes seating stress is obtained.

How to Order

Please specify the following details when ordering Dave gaskets:


  •   1.Type (Example: Stainless steel 304, Nickel 200, Stainless steel 316 etc.)
  •   2.Winding Material (Example: Dave Style W, Dave Style CW, Dave Style HX IR etc.)
  •   3.Filler Material (Example: Flexible Graphite, Ceramic, PTFE, NAM etc.)
  •   4.Ring Material for Gaskets having inner ring or centering ring or both (Example: Stainless steel 304, carbon steel etc.)
  •   5.Size (Example: 20 NPS, 24 NPS, 14 NPS etc.)
  •   6.Pressure Class (Example: 150 PSI, 300 PSI, 900 PSI etc.)

How to Order Example

Please specify the following details when ordering Dave gaskets:


  •   1. Dave Style CW
  •   2.Winding Material: Stainless steel 304
  •   3.Filler Material: Flexible Graphite
  •   4.Ring Material: Stainless Steel 304
  •   5.Size: 20 NPS
  •   6.Pressure Class: 300 PSI
